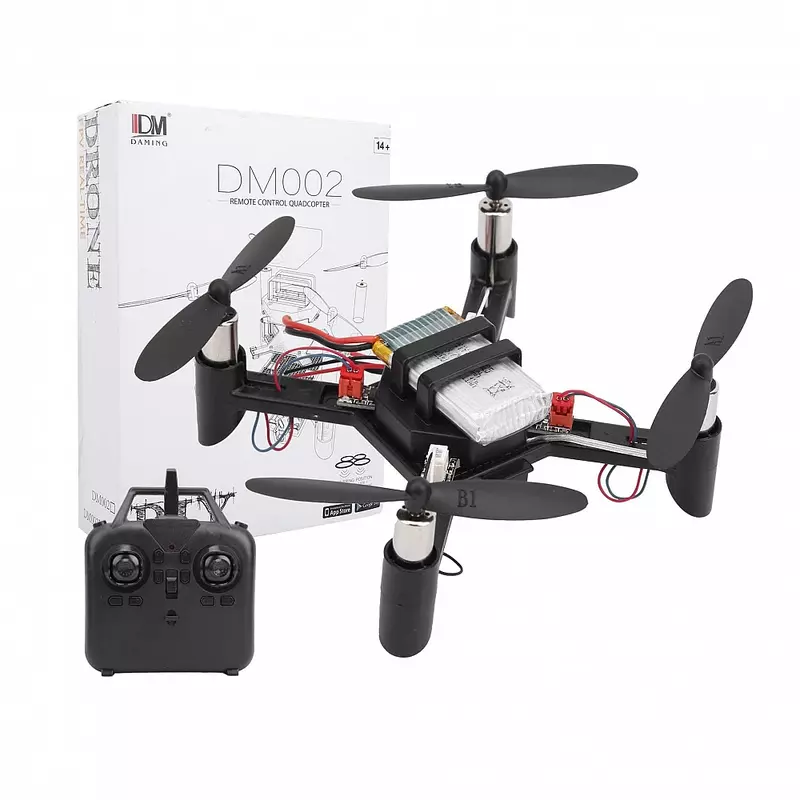

DIY DM002 Mini Drone Kit for Beginners & STEM Learning
Product Details
The DIY DM002 Mini Drone Kit is an entry-level, micro-scale quadcopter engineered to bridge the gap between basic assembly and foundational robotics. Operating on a robust 2.4GHz frequency spectrum, this kit allows students and drone enthusiasts to construct a fully operational RC drone from component level up. It provides an engaging, hands-on experience that introduces core concepts of electronic speed controllers, gyroscope stabilization, and flight mechanics.
Key Features
Brushless-Style Coreless Efficiency: Utilizes high-RPM 716 micro coreless motors matched with high-discharge LiPo technology to maximize thrust-to-weight performance without complex electronic speed controller overhead.
6-Axis Gyroscopic Stability: Integrated 3-axis accelerometer and 3-axis gyro flight control system ensures auto-leveling and predictable handling for indoor flights.
Solder-Friendly Modular Architecture: Engineered for STEM classrooms with an accessible PCB layout that reinforces basic circuit tracing and soldering skills.
Crash-Resistant Composite Frame: Molded from highly elastic polypropylene composite material designed to withstand repeated impacts during student training sessions.
Technical Specification
| Parameter | Specification |
| Model Type | DM002 DIY Edition |
| Motor Type | 716 Coreless Micro Brushed Motors ($7\text{mm} \times 16\text{mm}$) |
| Flight Controller Frequency | $2.4\text{GHz}$ 4-Channel System |
| Gyroscope Tracking | 6-Axis (3-Axis Gyro + 3-Axis Accelerometer) |
| Power Plant / Battery Capacity | $3.7\text{V}$$300\text{mAh}$ 25C LiPo Battery |
| Flight Endurance | $6 - 8\text{ minutes}$ |
| Charging Protocol | $5\text{V}$ USB Charger (Included) |
| Charging Duration | Approximately $40 - 50\text{ minutes}$ |
| Control Operational Range | Up to $100\text{ meters}$ (Line of Sight) |
| Frame Airframe Diagonal | $105\text{mm}$ Motor-to-Motor |
Frequently Asked Questions
Q: Does this DIY kit require precision soldering to get into the air?
A: Yes, this specific variant requires basic soldering to connect the coreless motor leads and power pigtail to the main receiver circuit board. It serves as an excellent practical training project for electronics labs and STEM institutions across India.
Q: Can I upgrade the stock 300mAh battery to get longer flight times?
A: While you can use alternative 3.7V single-cell (1S) LiPo packs up to 380mAh, exceeding that capacity increases the payload weight significantly. The extra weight forces the 716 coreless motors to draw more current, which can overheat the motors and reduce overall flight efficiency.
Q: Is the remote controller included, or do I need a separate transmitter?
A: This kit comes fully complete with its own dedicated 2.4GHz 4-channel controller transmitter. It operates on a paired protocol, removing any complex binding setups or configuration requirements through external computer software.
Q: How do we handle replacement parts when students inevitably crash during training?
A: Because this model uses standard micro-drone dimensions, the 716 motors, 3-blade props, and 1S LiPo cells are easily replaceable. The modular frame lets you swap broken structural arms quickly without replacing the central processing circuit board.
