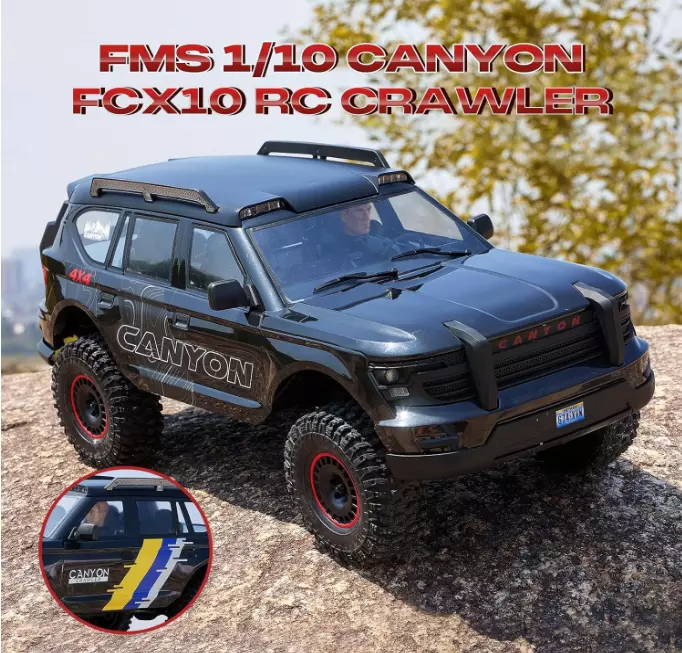

FMS Model 1:10 Canyon RS Black 4WD RC Crawler RTR Off-Road Trail Truck
The FMS Model 1: 10 Canyon RS Black is a feature-packed 1/10 scale 4WD RC crawler engineered for technical rock crawling, trail navigation, and scale driving realism. Inspired by futuristic off-road police rigs, it solves common trail obstacles like wide turning radiuses, chassis roll, and stripped gears by integrating a patented remote DIG tank-turn system, selectable front/rear locking differentials, a 2-speed transmission, and high-clearance portal axles on a low-center-of-gravity (LCG) chassis. Compatible with 2S and 3S LiPo battery packs, standard 12mm wheel hexes, and multi-channel 2.4GHz transmitters, this Ready-Set (RS) black crawler arrives factory-assembled with a magnetic quick-release body and full LED lighting system. Drivers choose it for its aggressive black styling, DIG pivot agility, and dependable all-terrain climbing performance across rocks, mud, and steep inclines.
Product Details
The FMS Model 1: 10 Canyon RS Black is an advanced 1/10 scale 4WD RC crawler designed for remote control hobbyists, technical trail drivers, and scale collectors who demand extreme climbing agility and engineering precision. Inspired by modern high-performance off-road patrol vehicles, it excels in technical rock crawling, tight trail navigation, and night runs where standard crawlers suffer from wide turning radiuses, chassis twist, and low ground clearance. Powered by a 550 32T brushed motor and Hobbywing 1060 ESC, and compatible with 2S/3S LiPo batteries and standard 12mm hex wheel hubs, it helps drivers achieve pinpoint low-speed throttle resolution, instant tank-style pivot turns, working LED light effects, and maximum traction on technical off-road courses.
Key Features
Patented DIG Tank-Turn System: Enables remote locking of a single rear wheel, allowing the truck to pivot sharply around rocks and tight trail gates.
Selectable Front & Rear Differential Locks: Remote-controlled locking differentials let drivers switch between open diffs for smooth cornering and fully locked diffs for maximum rock-crawling traction.
High-Clearance Portal Axles & LCG Chassis: Raises axle ground clearance to 60mm while keeping the low-center-of-gravity chassis planted on steep inclines and side-hill obstacles.
Magnetic Quick-Release Body with Integrated LEDs: Patented magnetic mounting system automatically connects power to the synchronized headlight, turn signal, and tail light system while allowing body removal without clips or wires.
Use Cases
Industry & Application: Technical rock crawling, outdoor trail expeditions, competition-style gate maneuvering, and scale RC vehicle demonstrations.
User Type: Intermediate to advanced RC drivers, scale trail enthusiasts, and hobbyists seeking a high-tech 1/10 scale crawler platform.
Problem Solved: Overcomes poor turning radius in tight trails, chassis flex under high torque, low differential clearance, and tedious body wire disconnects during battery changes.
Expected Outcome: Delivers effortless body removal, 60mm ground clearance over obstacles, tight DIG-assisted pivot turns, and continuous 4WD traction across rocks, sand, gravel, and mud.
Technical Specifications
| Parameter | Specification |
| Scale | 1/10 Scale |
| Drive System | Full-time 4WD |
| Axle Type | Front & Rear Portal Axles |
| Transmission | Remote 2-Speed Transmission with Counter-Rotating Shafts |
| Turn Capability | Patented DIG Remote Rear Wheel Lock (Tank Turn) |
| Differential Locks | Selectable Remote Locking Front & Rear Differentials |
| Chassis Platform | Reinforced LCG (Low Center of Gravity) Nylon Chassis |
| Motor Type | High-Torque 550 Brushed Motor 32T |
| ESC | Hobbywing 1060 ESC |
| Steering Servo | 25KG High-Torque Metal Gear Servo |
| Ground Clearance | 60 mm |
| Wheelbase / Tread | 325 mm / 208 mm |
| Wheel Hex Adapter | 12 mm |
| Lighting System | Synchronized Full LED Light Group with Magnetic Power Coupler |
| Battery Compatibility | 2S - 3S LiPo Battery Packs (Compartment: 156 x 48 mm) |
| Radio System | 2.4GHz MG11 Transmitter with FS-R11P-BS Receiver |
| Package Contents | 1x FMS 1/10 Canyon RS Black Truck, 1x MG11 Transmitter, 2x Decal Sets, 1x Manual |
| Manufacturer | FMS Hobby |
5. Frequently Asked Questions
Q1) What is this product used for?
Ans: The FMS Model 1: 10 Canyon RS Black is used for low-speed rock crawling, technical trail navigation, and obstacle course climbing. It gives drivers an agile 1/10 scale 4WD truck with remote DIG tank turns, locking differentials, and 2-speed shifting.
Q2) Which drones, systems, or devices is it compatible with?
Ans: This 1/10 scale crawler is compatible with 2S and 3S LiPo battery packs equipped with XT60 connectors, standard multi-channel 2.4GHz radio systems, standard 12mm hex wheel hubs, and aftermarket 1/18-1/10 scale ESCs and servos.
Q3) Is this product suitable for beginners or professionals?
Ans: Yes, it is suitable for both intermediate and experienced RC drivers. Beginners appreciate its pre-assembled Ready-Set (RS) layout and stable LCG handling, while advanced hobbyists leverage its DIG tank-turning, locking differentials, and high-clearance portal axles for technical trail runs.
Q4) How does this product improve performance or solve problems?
Ans: It solves wide turning angles and high-centering on obstacles by combining a DIG rear wheel lock for tank-style pivot turns with 60mm ground clearance portal axles and selectable diff locks. The magnetic body mount also eliminates loose light wires and body clips.
Q5) What should buyers check before purchasing this product?
Ans: Buyers should check their battery tray dimensions (156 x 48 mm), ESC XT60 connector type, transmitter AA battery requirements, and LiPo balance charger compatibility before purchasing.
